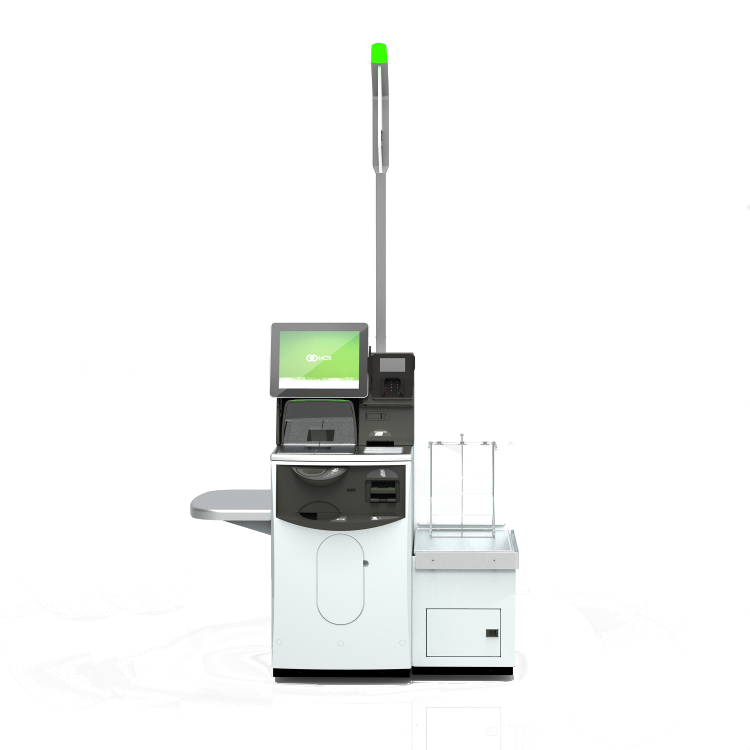

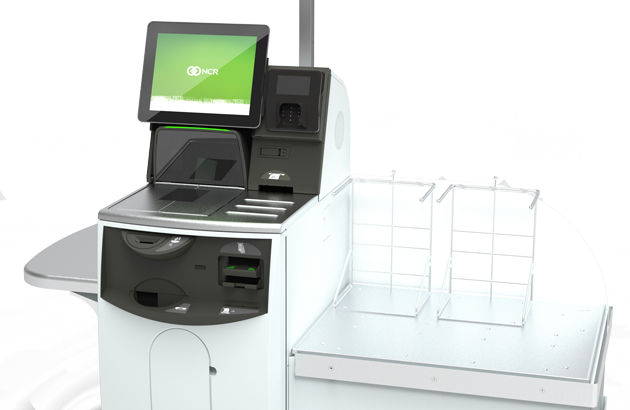

NCR FastLane SelfServ Checkout R6L features a responsive, multi-touch display with sleek edge-to-edge glass, advanced cash/coin handling capabilities, and new imaging technologies that give shoppers an easier way to scan, bag and pay for their items, all while helping your bottom line.

Key Features

  • Proven cash handling capabilities
  • Coin and note recycler
  • Advanced processor technology provides a path to future operating systems
  • Leverages the NCR XR7 with intuitive multi-touch display
  • NCR RealScan™ 79e Bi-Optic Imager can be used to enhance security and convenience with Produce Assurance and Picklist Assist

Technical Specifications

  • Intuitive user interface
  • High bright 15” projected capacitive touchscreen
  • 10-point multi-touch capability
  • Integrated audio
  • Co-located cash inputs/outputs


  • White
  • Optional: Custom color branding


  • 15” LED Projected Capacitive Touchscreen 4:3, 1024x768

Integrated Peripheral Options

  • Input shelf
  • 1, 2 or 3 bagging options with security scale
  • Configurable lane orientation
  • Integrated scale for produce
  • Coupon bin with sensor (option)
  • 1 or 2 sided receipt printer (option)
  • Uninterrupted Power Supply (UPS) (option)

Currency handling

  • Coin and note recycler with support for up to 6 denominations
  • Compatible with most industry standard payment devices, including contactless


  • Front-facing camera option
  • Overhead tri-light security camera option
  • Intel Q170 Chipset with Intel® Celeron or Intel Core i3 processor
  • 120GB Solid State Drive with partition restore capability
  • 8GB to 16GB DDR3 1600 Memory

Supported Operating Systems

  • Windows® 10 IoT Enterprise 2016 LTSB Value/Entry Embedded (64-bit)
  • POSReady 7 Embedded (32-bit or 64-bit)

Related Products

  • NCR 7879e Scanner-Scale
  • NCR FastLane Mobile Shopper

We know that your store's front-end is constantly evolving. With its advanced processor technology, NCR FastLane SelfServ Checkout R6L Plus delivers increased performance while providing a path to future operating systems.

Learn More About the NCR FastLane SelfServ Checkout R6L Plus

Download the Info Sheet
